3.5″-Speaker rubber surround – IIR rubber edge

Short Description:

Main feature: excellent air tightness, excellent water tightness, excellent sealing.

The displayed product is one of our well sale products, which is made of IIR material with 3.5-inch rubber edge.

For quotation, samples or customized OEM/ODM request,
please click the button below, we are happy to reply.

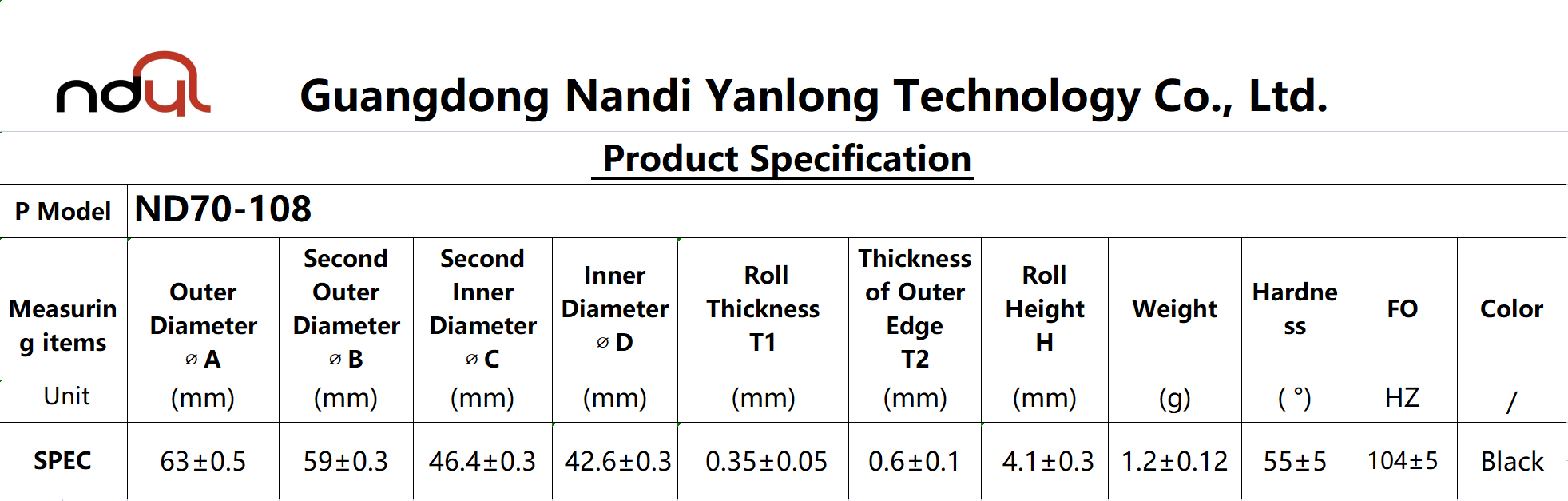

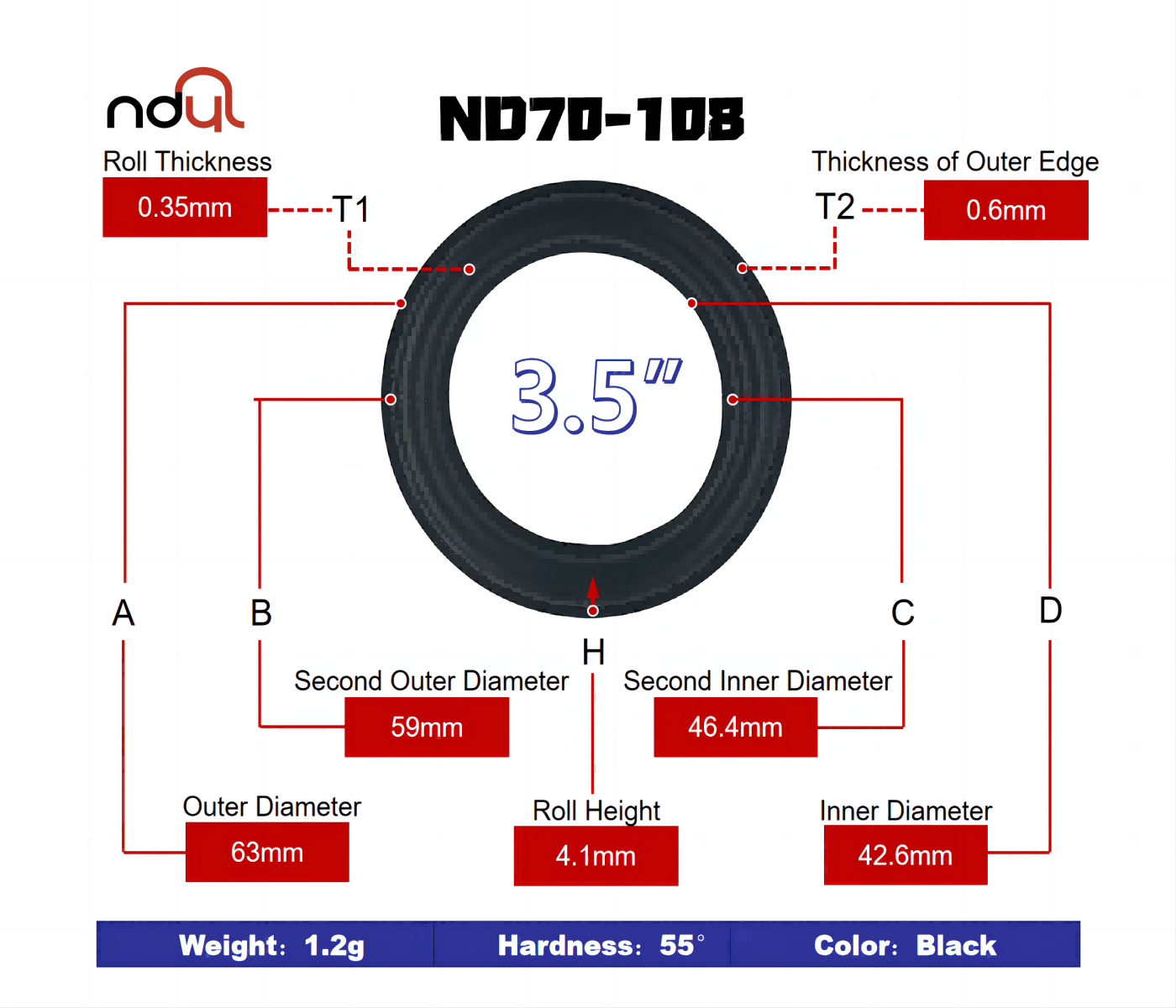

Model:ND70-108

Material:IIR

Business Type: Manufacturer with OEM/ODM service


Product Detail

Product Tags

Product Detail

微信图片_20221221143414
Product Detail
_20221221143408

Surface Treatment

surface treatment

Edge design

Edge design

Customizd Contetn

Material NBR SBR IIR EPDM Foaming
Size 1mm-21mm 1mm-21mm 1mm-21mm 1mm-21mm 3mm-12mm
Hardness 45°-85° 45°-85° 45°-85° 45°-85° 55°-75°
Thicken 0.15mm-10mm 0.15mm-10mm 0.15mm-10mm 0.15mm-10mm 0.15mm-10mm
Shape Round, oval, irregular, etc., accept foreign molds, and support customized molds
Color Black, gray, etc. according to customer requirements
Surface treament Smooth, frosted, undercut, etc. according to customer requirements
Edge design High-pressure strip, texture, reverse concave edge, notch, punching, etc. according to customer requirements




IIR rubber surround has excellent air tightness, excellent water tightness, excellent sealing.

Butyl, also known as Isobutylene-isoprene (IIR), is a synthetic rubber developed in the 1940’s. It has exceptionally low gas permeability making it ideal for inner tubes and high pressure/vacuum sealing applications. Its very low resilience makes it suitable for shock and vibration damping. IIR is a great option for shock absorption. It offers exceptionally low gas and moisture permeability and outstanding resistance to heat, ageing, weather, ozone, chemical attack, flexing, abrasion and tearing. Butyl is resistant to phosphate ester based hydraulic fluids and has excellent electrical insulation properties. It has a tendency to trap air, blister and creep during manufacture.

Our advantages

111
Our advantages2

Term:EXW/FOB/CIF/CFR/DDP

Port: Shen Zhen/Guang Zhou/Ning Bo/Shang Hai

Package:Export Standard Unified Carton Packaging.

Special service: help find low freight and freight counter-offer

DDP

FAQ

Q1: Can you make OEM/ODM or custom order?
Answer 1: We welcome OEM/ODM or customized product list.

Q2: What is the packaging of your products?
Answer 2: The packaging method is based on the cartons uniformly used by the company, and special packaging will be charged separately.

Q3: Can I get samples from you for testing?
Answer 3: Customers are welcome to take samples for testing. Our company supports free samples of existing models. You only need to bear the freight.

Q4: What are the terms of payment?
Answer 4: 30% T/T deposit, 70% T/T balance payment before delivery. If there is special need, it can be negotiated.

Q5: Can I visit your factory?
Answer 5: 1. In the epidemic environment, our company provides remote online factory detection service. Please contact our business. 2. Welcome to visit the company for field inspection. Please make an appointment in advance before the investigation, so as not to delay your schedule.
