3.5″-Speaker rubber surround – NBR rubber edge

Short Description:

Main feature:  Excellent oil resistance, good wear resistance, good heat resistance,strong adhesion.

The displayed product is one of our well sale products, which is made of NBR material with 3.5-inch rubber edge.

For quotation, samples or customized OEM/ODM request,
please click the button below, we are happy to reply.

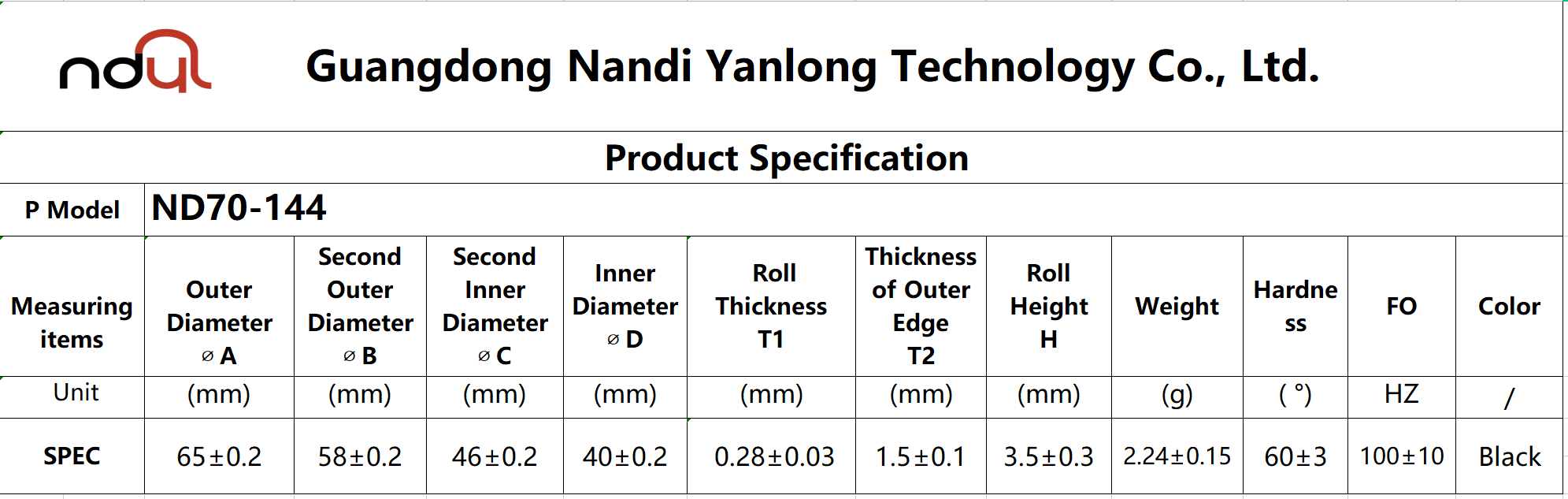

Model:ND70-144

Material:NBR

Business Type: Mufacturer with OEM/ODM service


Product Detail

Product Tags

Product Detail

5707cb4cea112937265de690807d47a
Product Detail
cc8ef5ab092ed659940b1d6d6ea4eff

Surface Treatment

surface treatment

Edge design

Edge design

Customizd Contetn

Material NBR SBR IIR EPDM Foaming
Size 1mm-21mm 1mm-21mm 1mm-21mm 1mm-21mm 3mm-12mm
Hardness 45°-85° 45°-85° 45°-85° 45°-85° 55°-75°
Thicken 0.15mm-10mm 0.15mm-10mm 0.15mm-10mm 0.15mm-10mm 0.15mm-10mm
Shape Round, oval, irregular, etc., accept foreign molds, and support customized molds
Color Black, gray, etc. according to customer requirements
Surface treament Smooth, frosted, undercut, etc. according to customer requirements
Edge design High-pressure strip, texture, reverse concave edge, notch, punching, etc. according to customer requirements




Nitrile -butadiene rubber (also known as NBR rubber) was developed during the 1930s. It is fabricated through the co-polymerization of acrylonitrile (ACN) (polar building block) and 1.3-butadine (nonpolar building block). It is the seal industry’s most widely used and economical elastomer. This is partly because it displays excellent resistance to petroleum-based oils, fuels, water, alcohols, silicone greases and hydraulic fluids. Nitrile has a temperature range of between -54 and +149 degrees Celsius and has a good balance of desirable properties like low compression set, high abrasion resistance and high tensile strength.

Our advantages

111
Our advantages2

Term:EXW/FOB/CIF/CFR/DDP

Port: Shen Zhen/Guang Zhou/Ning Bo/Shang Hai

Package:Export Standard Unified Carton Packaging.

Special service: help find low freight and freight counter-offer

DDP

FAQ

Q1: Can you make OEM/ODM or custom order?
Answer 1: We welcome OEM/ODM or customized product list.

Q2: What is the packaging of your products?
Answer 2: The packaging method is based on the cartons uniformly used by the company, and special packaging will be charged separately.

Q3: Can I get samples from you for testing?
Answer 3: Customers are welcome to take samples for testing. Our company supports free samples of existing models. You only need to bear the freight.

Q4: What are the terms of payment?
Answer 4: 30% T/T deposit, 70% T/T balance payment before delivery. If there is special need, it can be negotiated.

Q5: Can I visit your factory?
Answer 5: 1. In the epidemic environment, our company provides remote online factory detection service. Please contact our business. 2. Welcome to visit the company for field inspection. Please make an appointment in advance before the investigation, so as not to delay your schedule.
